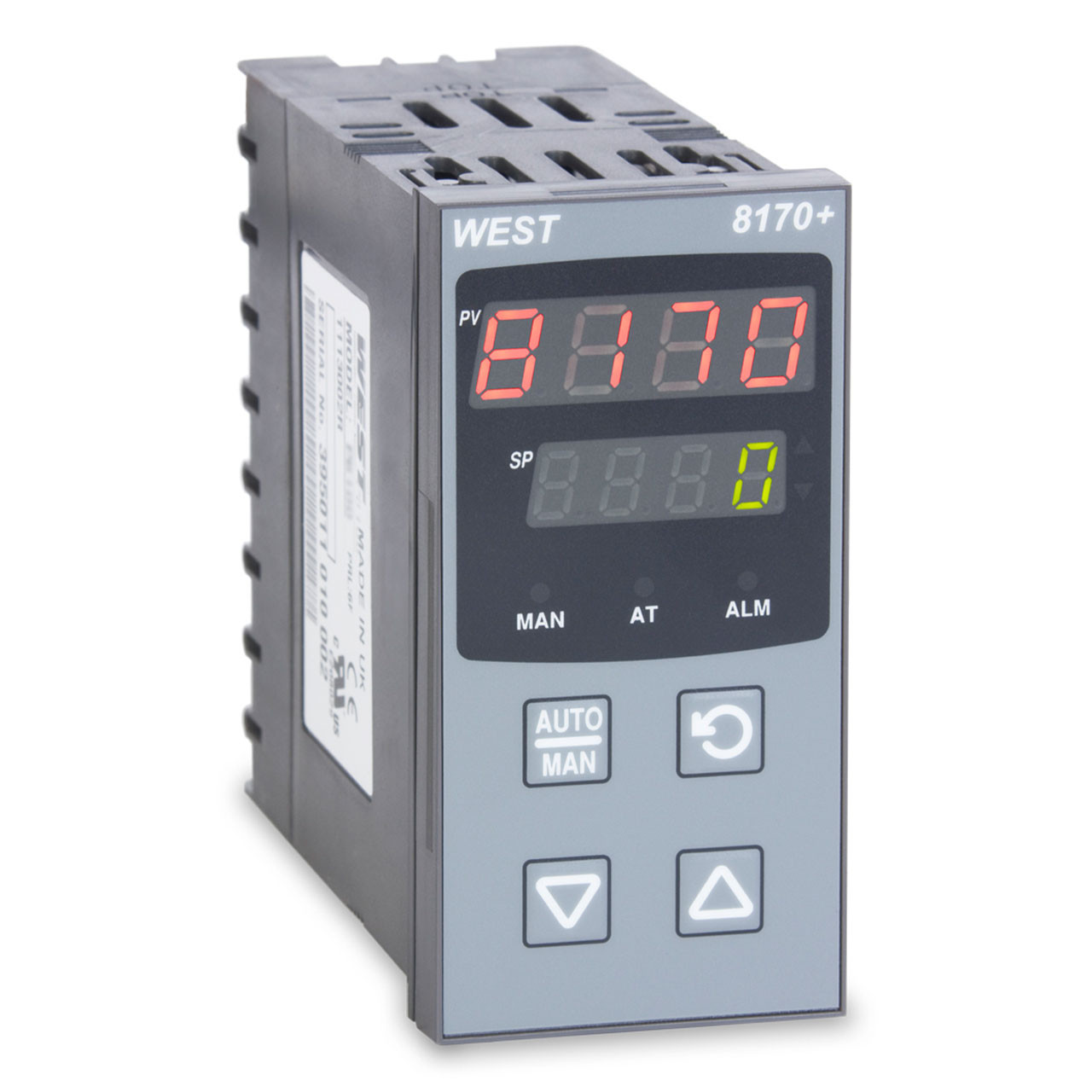

8170+ Plus Series VMD & Temperature Controller
3‑point stepping valve motor drive (VMD) control
Valve position indication
Auto or manual tuning with pre‑tune and self‑tune selection
Jumperless configuration for fast, error‑free setup
Dual 4‑digit LED displays
Universal input for thermocouple, RTD, DC, and linear mA/V/mV (user selectable)
Up to 4 configurable outputs: relay, DC linear, SSR driver, triac, or transmitter power supply
Process and loop alarms
Remote or dual setpoint options
Modbus communications
Program security for controlled access
The 8170+ Single‑Loop Controller is part of the Plus Series and features 3‑point stepping control specifically engineered for open‑loop valve motor drive (VMD) applications. Advanced pre‑tune and self‑tuning algorithms simplify commissioning while minimizing output activity to reduce wear on mechanical components such as valves, contactors, and relays. In operation, the 8170+ significantly reduces valve oscillation and enables the process to reach stable control conditions up to three times faster than conventional tuning methods. Additional configurable outputs support alarms, 24 VDC transmitter power supply, and process or setpoint retransmission, making the 8170+ a powerful and flexible valve control solution.
