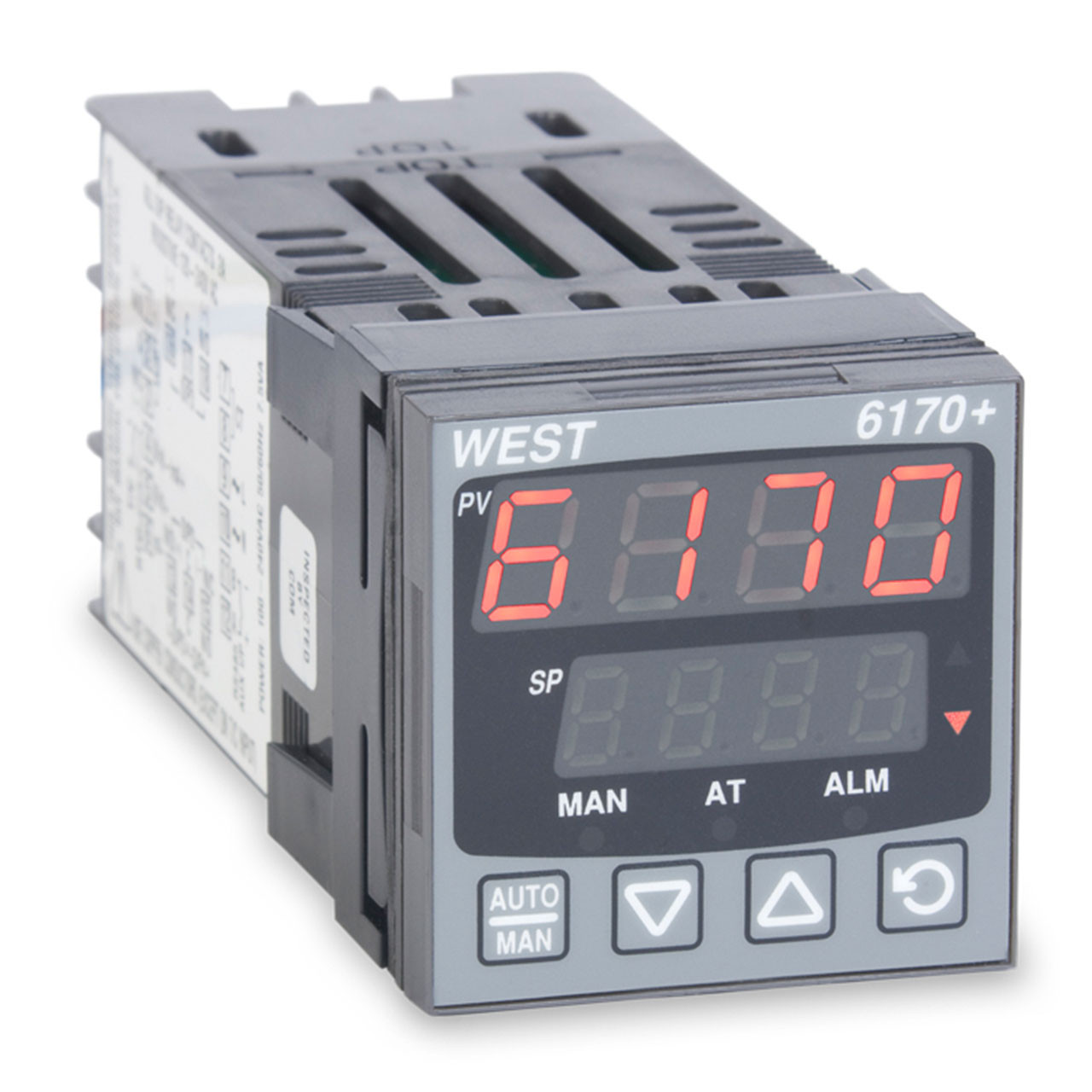

Please note: The product image may depict a similar model from the same series.
6170+ Plus Series VMD & Temperature Controller
3‑point stepping valve motor drive (VMD) control
Valve position indication
Pre‑tune and self‑tuning with auto or manual selection
Jumperless configuration and auto‑setup
Dual 4‑digit LED displays
Universal inputs: thermocouple, RTD, DC, linear mA/V/mV (user selectable)
Up to 4 outputs: relay, DC linear, SSR driver, triac, or transmitter power supply
Process and loop alarms
Remote/dual setpoint capability
Modbus communications
Program security for controlled access
The 6170+ Single‑Loop Controller is part of the Plus Series and features 3‑point stepping control specifically designed for open‑loop valve motor drive (VMD) applications. Advanced pre‑tune and self‑tuning algorithms simplify setup and significantly reduce output activity, minimizing wear on valves, contactors, and relays. In operation, self‑tuning greatly reduces valve oscillation while achieving faster, more stable control—often reaching setpoint up to three times faster than conventional tuning methods. The 6170+ also supports additional outputs for alarms, 24 VDC transmitter power supply, and process or setpoint retransmission, making it a flexible solution for demanding control environments.
